Vestel

Select Webasto Next as your wallbox.

Step 1: Connect to the WLAN (hotspot) broadcast by your charging station. All EVC04 models feature a WLAN hotspot function that is enabled by default. The following credentials can be used to access your charging station's signal:

  • WLAN name or SSID: Serial number of your charging station

  • Password: Chargebox ID

Step 2: Once connected to the WLAN hotspot network, open a web browser on your computer or mobile device. In the URL bar, enter 192.168.1.1, which is the IP address of the charging station.

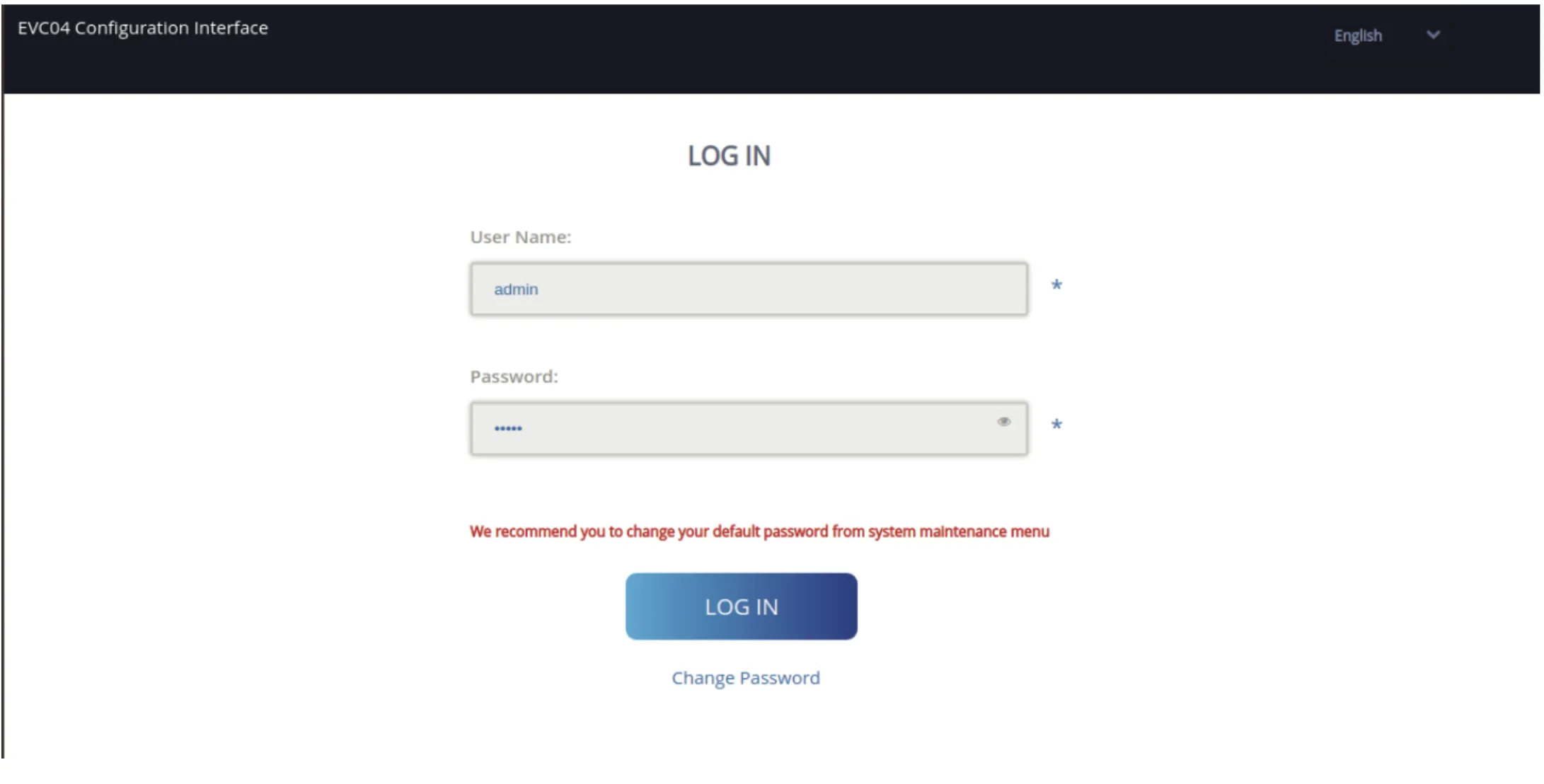

Step 3: After entering the URL, you will be redirected to the WebUI login page. Use the following credentials to log in to the web interface:

  • User name: admin
  • Password: admin

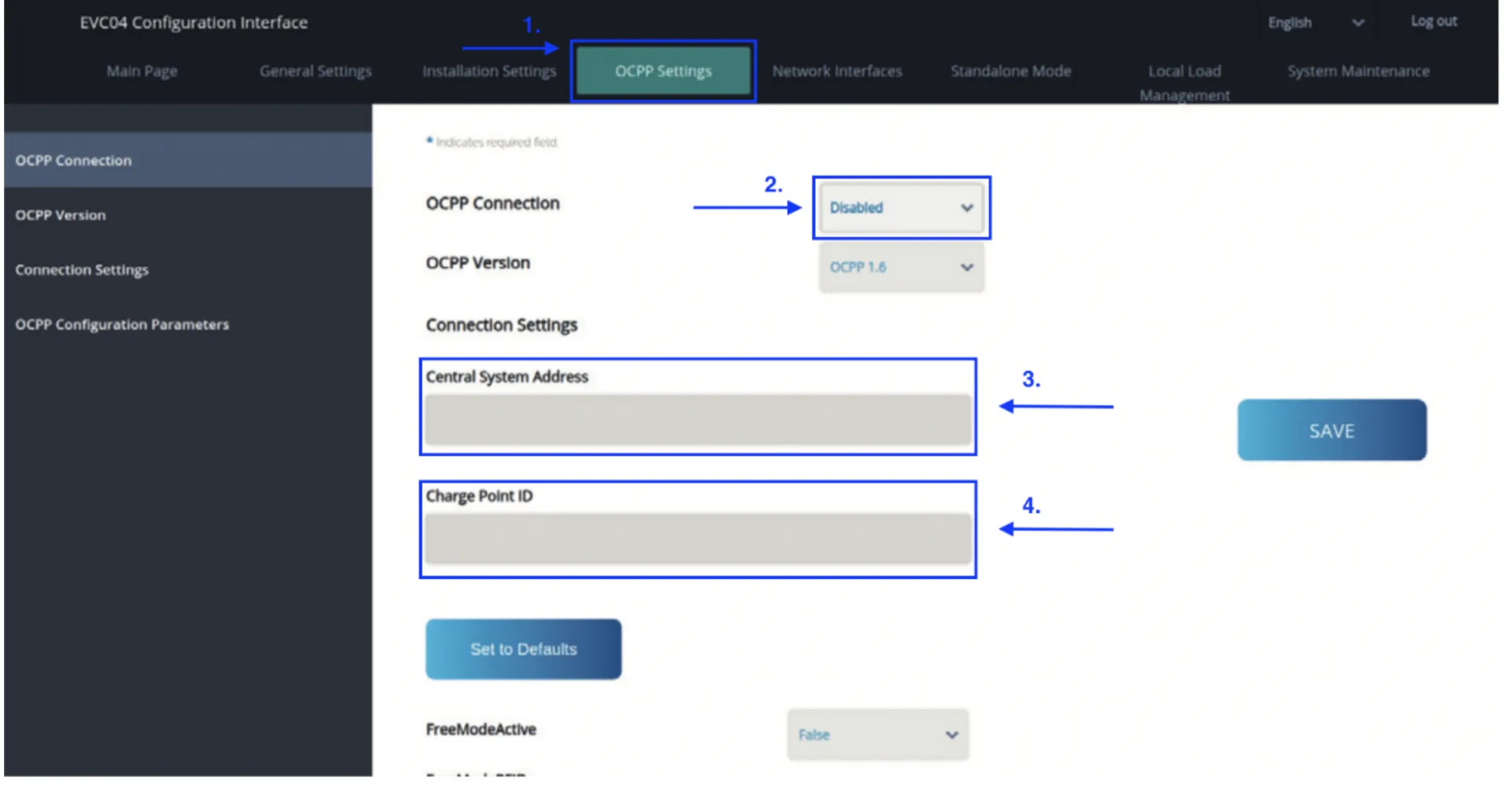

Step 4: Once you are in the WebUI, go to OCPP Settings and enable the OCPP Connection. Now, copy the OCPP link from the app:

Next, you must enter the following details:

  • Central System address: ws://cleverpv-ocpp.azurewebsite.net/ocpp/XXXXXX
  • Charge Point ID: *Enter your charging station identifier here*

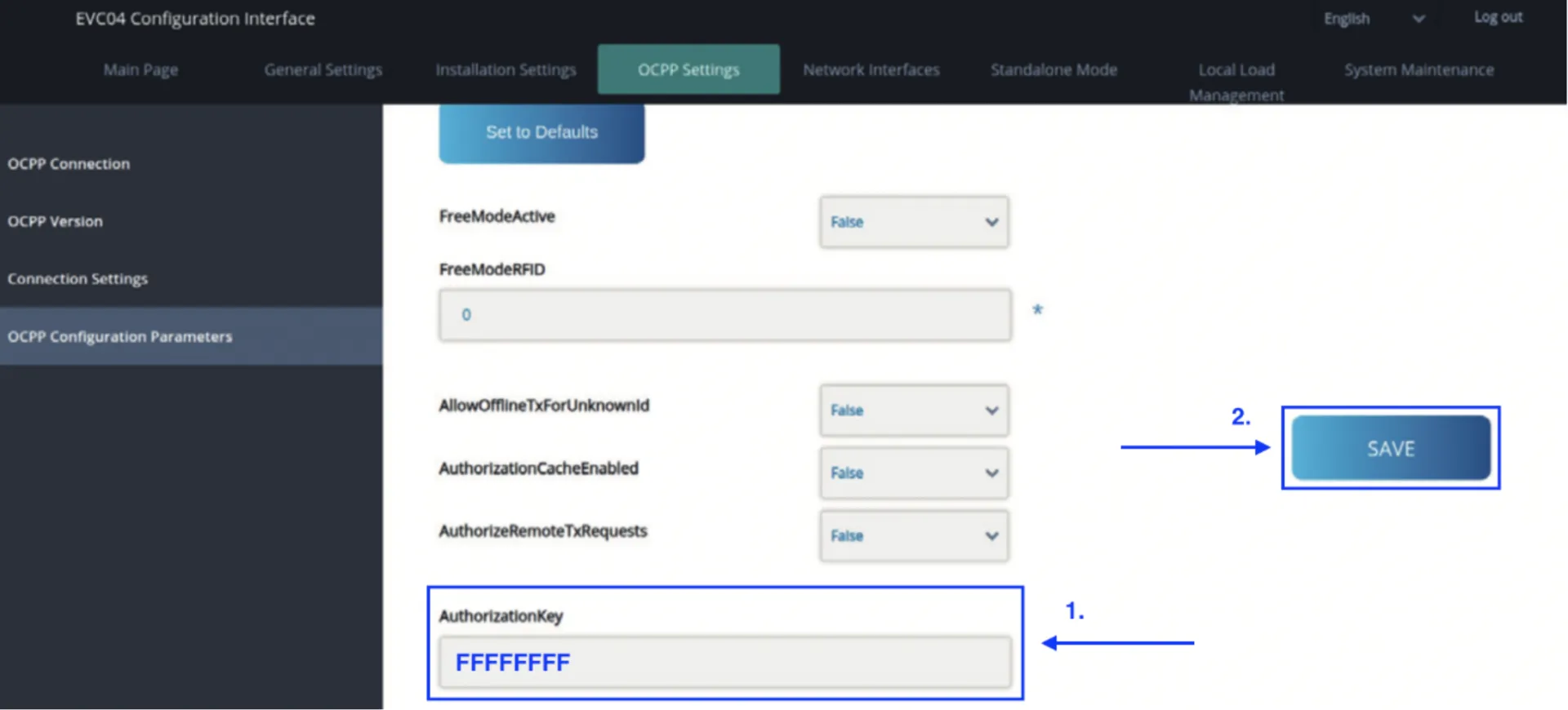

Step 5: Scroll down to the AuthorizationKey field and enter FFFFFFFF.


Step 6: Click Save.


​Step 7: Now, connect your charging station to the internet. To do this, navigate to the Network Interfaces section and select WiFi. Enter the following data:

  • SSID: The exact name of your WLAN
  • Password: Your WLAN password

Step 8: After filling in the information, please click Save.

Please ensure that "Power Optimizer" is not enabled.
